Hormonally Active Adrenocortical Carcinoma in a 24-Year Old Woman

Abstract

Background

Adrenal tumors are common and frequently identified incidentally; adrenalectomy is indicated for functional tumors, masses ≥4 cm, and cases where malignancy is suspected.

Summary

A 24-year old previously healthy woman presented with a six-month history of weight gain, amenorrhea, hirsutism, acne, and hypertension. Biochemical evaluation revealed hypercortisolism and elevated DHEA-S. Abdominal imaging demonstrated an 11 cm right adrenal mass, abutting the right hepatic lobe, right kidney, and inferior vena cava. The patient underwent open right adrenalectomy for the presumptive diagnosis of hormonally active adrenocortical carcinoma (ACC). The tumor was able to be mobilized from surrounding structures without requiring resection of adjacent organs. Pathological exam demonstrated a 728 g, 16.5 cm ACC with extensive necrosis, and Ki67 proliferation index of 35% and large vessel vascular invasion. Postoperatively, the symptoms of hypercortisolism, virilization, and hypertension resolved. The patient is currently undergoing adjuvant mitotane therapy and has no evidence of disease six months after surgery.

Conclusion

Adrenal masses are highly prevalent and are detected at increasing rates with widespread use of cross-sectional imaging. Biochemical evaluation should be performed to diagnose hormonally active tumors. The majority of adrenal lesions are benign and nonfunctional. Adrenalectomy is indicated for functional tumors, and in cases where malignancy is suspected, and should be considered for masses ≥4 cm. ACCs are rare, often functional tumors with a poor prognosis. Surgical resection is the primary treatment. Adjuvant mitotane may improve survival and should be considered for high-risk tumors. Clinical trials of molecular and immunotherapies are ongoing, but genetic variability and the rarity of these tumors remains a challenge to the development of novel therapeutic options.

Key Words

Adrenal tumor; adrenocortical carcinoma; functional adrenal tumor; adrenal incidentaloma; Cushing syndrome

Case Description

A 24-year old woman presented to her primary care physician with a six-month history of weight gain, accompanied by amenorrhea with new hirsutism and worsening acne (Figure 1). She also noted new onset of hypertension. She was initiated on anti-hypertensive therapy, which was escalated during the course of her diagnostic evaluation, but ultimately remained poorly controlled on four anti-hypertensive agents. The patient had previously been a healthy marathon runner and worked full-time. Her past medical history and family history were otherwise unremarkable.

Figure 1. Pre-operative findings of moon facies, hirsutism, and acne.

Biochemical evaluation demonstrated an elevated midnight salivary cortisol of 510 ng/dL (normal <100 ng/dL), suppressed 6:30 AM serum ACTH <1 pg/mL (normal 6–76 pg/mL), elevated DHEA-S of 350 mcg/dL (normal 44–332 mcg/dL), and hypokalemia with serum potassium 2.8 mmol/L (normal 3.4–5.0 mmol/L). Low- and high-dose dexamethasone suppression tests were consistent with autonomous adrenal secretion of cortisol. Serum renin, aldosterone, and metanephrines were within normal limits. A CT scan of the abdomen demonstrated an 11-cm heterogenous right adrenal mass (Figure 2), abutting the inferior vena cava (IVC), right kidney, and right hepatic lobe and exerting mass effect on all adjacent structures, without evidence of discrete invasion or distant metastases, and a normal appearing left adrenal gland.

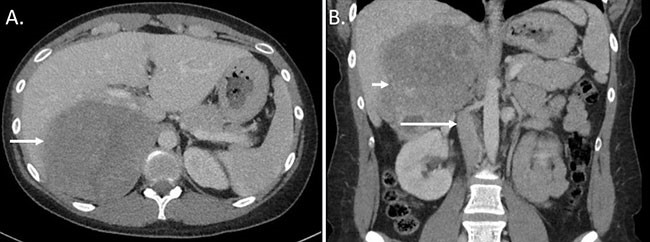

Figure 2: CT abdomen and pelvis with intravenous contrast. A.) Axial images demonstrating an 11 cm, heterogenous adrenal mass (white arrow). B.) Coronal images showing the tumor (short white arrow) abutting the inferior vena cava (long white arrow), right hepatic lobe, and right kidney.

Chest CT did not demonstrate any evidence of pulmonary metastases. On abdominal MRI (not shown), the mass was predominantly mildly T2 hyperintense, with some punctate internal areas of T1 intensity. On postcontrast images, the mass demonstrated heterogenous arterial enhancement and progressive venous enhancement. There was no evidence of concerning lymphadenopathy or distant metastases, and a normal left adrenal gland was visualized.

Imaging and biochemical evaluation were most consistent with a hormonally active adrenocortical carcinoma (ACC). Due to the high concern for malignancy and the large size of the mass, the patient underwent an open right adrenalectomy. Cattell-Braasch and full Kocher maneuvers were performed to expose the adrenal tumor. A cholecystectomy was performed for better access. There was no evidence of direct tumor invasion of the adjacent structures, although neovascularization of the lesion was noted by vessels branching from the right hepatic vein. The mass was able to be mobilized free from the right kidney, IVC, and right hepatic lobe. Final pathologic examination revealed a 728 g, 16.5 cm adrenal-based mass with an orange rim (grossly suggestive of adrenal cortex), with central hemorrhage and necrosis. Surgical margins were negative; no lymph nodes were resected with the specimen.

Microscopically, tumor morphology demonstrated packeted growth, eosinophilic, plasmacytoid cells (often associated with androgen production), and prominent chromatin centers. There was frank tumor necrosis and conspicuous mitoses, including atypical mitoses, and large vessel invasion (not into IVC or renal vein), findings consistent with a malignant diagnosis (Figure 3). The tumor was staged as T3NXM0 by current 7th edition American Joint Committee on Cancer staging. Immunohistochemical stains were positive for markers associated with adrenal cortical origin, with a markedly elevated Ki67 proliferative index at 35%. Taken together, the findings pointed to a clear diagnosis of ACC.

Figure 3. a) Gross pathology exam demonstrates a 728 g, 16.5 cm adrenal mass with extensive necrosis. b) Hematoxylin and eosin staining (400X magnification) shows packeted tumor cells with marked nuclear pleomorphism (arrow), eosinophilic cytoplasm, prominent chromocenters, and scattered hypereosinophilic, apoptotic cells (arrowheads).

Postoperatively, the patient did well, and she was discharged home five days later on prednisone, normotensive off all anti-hypertensive medications. Within two weeks of surgery, she had lost more than 10 pounds and her moon facies, acne, and hirsutism resolved. She is currently undergoing mitotane therapy, and has no evidence of disease six months after surgery. Postoperative surveillance with biochemical evaluation of cortisol and ACTH, and cross-sectional imaging is planned every three months.

Discussion

Adrenal tumors are common, affecting up to 6% of patients on autopsy series; the incidence increases with age. The majority of tumors are incidentally identified, and detection rates have increased with the widespread use of cross-sectional imaging.¹ The initial biochemical evaluation of an adrenal mass includes serum metanephrines, cortisol levels, serum renin and aldosterone levels, DHEA-S, electrolyte, and creatinine levels; ultimately most adrenal incidentalomas are benign and nonfunctional.^1-3 Functional adrenal tumors include pheochromocytomas, aldosteronomas, cortisol-producing adenomas, and ACCs. Secondary malignancies metastatic to the adrenals are more frequent than ACCs.

Adrenalectomy is indicated in hormonally active tumors and when malignancy is suspected. Current Endocrine Society (American Association of Clinical Endocrinologists/American Association of Endocrine Surgeons) guidelines suggest considering adrenalectomy for nonfunctional lesions 4 cm or greater, those with rapid increase in size, and masses with imaging characteristics suggestive of malignancy.² National Comprehensive Cancer Network (NCCN) guidelines recommend adrenalectomy in intermediate (4–6 cm) size tumors with aggressive features on imaging, while tumors 4–6 cm in size with benign characteristics may be monitored with serial imaging.⁴ The European Society of Endocrinology and the European Network for the Study of Adrenal Tumors (ENSAT) guidelines do not suggest a size cut-off for adrenalectomy, but recommend an individualized approach.⁵ Laparoscopic adrenalectomy is considered the standard of care in benign and small tumors, although controversy exists regarding the safety and oncologic outcome of laparoscopic resection in large malignant tumors.^6-9

Primary adrenocortical carcinomas are rare, with an annual incidence of 0.72–1.26 per million.^10,11 They are among the most aggressive of human cancers, with a five-year survival of 30%–50%.^12,13 Approximately 60%–80% of ACCs are functional, and they may present with a mixed hormonal picture, most commonly with Cushing syndrome and virilization, as in this patient.¹⁴ Aldosterone-secreting ACCs are rare, and constitute <3% of primary adrenal cancers.^15,16 Severe Cushing syndrome may clinically mimic hyperaldosteronism, manifesting with hypertension and hypokalemia. In the presence of markedly elevated glucocorticoid levels, cortisol may bind mineralocorticoid receptors, increasing renal excretion of potassium despite normal aldosterone levels.¹⁷ In addition to functional testing, patients with suspected malignant tumors should undergo an appropriate staging evaluation, including imaging to evaluate for pulmonary or other distant metastases, either with chest CT or FDG-PET CT, or both.¹⁸ In lesions where diagnostic uncertainty exists, MRI may be useful in establishing a diagnosis of ACC, as well as evaluating for vascular invasion or tumor thrombus. Although there may be a role for percutaneous biopsy of suspected adrenal metastases in patients with a known cancer history, biopsy should never be performed until functional evaluation has excluded a diagnosis of pheochromocytoma, due to the inherent dangers of manipulating catecholamine-secreting tumors.¹⁹ There is no role for biopsy of suspected ACCs, due to the potential for seeding the biopsy tract. ²

Surgical resection is the primary therapy for ACC and may be curative in localized disease¹³; however, recurrence rates are high, with five-year recurrence-free survival approximately 20%.²⁰Prognostication remains a challenge in ACC. The Weiss score, first introduced in 1984, relies upon nine histologic features and performs well in differentiating between benign adrenocortical neoplasms and ACCs; however its prognostic value is variable.²¹Multiple publications report the strong performance of the Ki67 index as a predictor of both recurrence-free and overall survival.^22-24Based on retrospective studies and with some conflicting evidence, adjuvant mitotane has been posited to improve recurrence-free and overall survival, and is typically recommended for high-risk tumors.^25,26The 2015 NCCN guidelines suggest consideration of adjuvant mitotane for larger or high grade tumors, and those with capsular rupture or positive margins; however given the rarity of ACC, this recommendation is based on retrospective data alone.⁴Mitotane may be used in combination with external beam radiation or other cytotoxic chemotherapies. Clinical trials of molecular and immunotherapies are ongoing, but they have been stymied by genetic variability in these tumors and limited numbers of cases.²⁷The NCCN guidelines suggest ongoing post-operative surveillance every 3–6 months with cross-sectional imaging and biochemical evaluation if the tumor was originally functionally active.

Conclusion

Adrenal masses are common and being detected at increasing rates due to widespread use of cross-sectional imaging. Biochemical evaluation should be performed to diagnose hormonally active tumors. The majority of adrenal cortical lesions are benign and nonfunctional. Adrenalectomy is indicated for functional tumors, and cases where malignancy is suspected, and should be considered for masses ≥4 cm. Adrenocortical carcinomas are rare, usually functional, and portend a poor prognosis. Surgical resection is the primary treatment. Adjuvant mitotane may be considered for high-risk tumors. Molecular and immunotherapies have had little success with few in development due to genetic heterogeneity in these rare tumors.

Lessons Learned

Adrenal tumors are common; the majority are benign and nonfunctional. Adrenalectomy is indicated for functional tumors, large masses, and when malignancy is suspected.

Adrenocortical carcinomas are rare, typically functional tumors with a poor prognosis. Surgical resection is the primary treatment. Adjuvant mitotane may be considered for high-risk tumors.

Authors

Wachtel H^a-d, Sadow PM^b,d, Stathatos N^c,d, Lubitz CC^a,d

Correspondence Author

Carrie Lubitz, MD, FACS
Massachusetts General Hospital
Yawkey Center for Outpatient Care, 7B
55 Fruit Street
Boston, MA 02114
617-643-9473
clubitz@partners.org

Author Affiliations

1. Massachusetts General Hospital, Dept. of Surgery, Div. of General & Endocrine Surgery, Boston, MA
2. Massachusetts General Hospital, Dept. of Pathology, Boston, MA
3. Massachusetts General Hospital, Dept. of Medicine, Div. of Endocrinology, Boston, MA
4. Harvard Medical School, Boston, MA

References

1. Cawood TJ, Hunt PJ, O'Shea D, Cole D, Soule S. Recommended evaluation of adrenal incidentalomas is costly, has high false-positive rates and confers a risk of fatal cancer that is similar to the risk of the adrenal lesion becoming malignant; time for a rethink? Eur J Endocrinol. 2009 Oct;161(4):513-527. doi: 10.1530/EJE-09-0234. Epub 2009 May 13.
2. Zeiger MA, Thompson GB, Duh QY, et al. The American Association of Clinical Endocrinologists and American Association of Endocrine Surgeons medical guidelines for the management of adrenal incidentalomas. Endocr Pract. 2009 Jul-Aug;15(5):450-453.
3. Herrera MF, Grant CS, van Heerden JA, Sheedy PF, Ilstrup DM. Incidentally discovered adrenal tumors: an institutional perspective. Surgery. 1991 Dec;110(6):1014-21.
4. Network NCC. NCCN Guidelines, Neuroendocrine Tumors. NCCN Practice Guidelines in Oncology. 2015.
5. Fassnacht M, Arlt W, Bancos I, et al. Management of adrenal incidentalomas: European Society of Endocrinology Clinical Practice Guideline in collaboration with the European Network for the Study of Adrenal Tumors. Eur J Endocrinol. 2016 Aug;175(2):G1-G34. doi: 10.1530/EJE-16-0467.
6. Lee CW, Salem AI, Schneider DF, et al. Minimally Invasive Resection of Adrenocortical Carcinoma: a Multi-Institutional Study of 201 Patients. J Gastrointest Surg. 2017 Feb;21(2):352-362. doi: 10.1007/s11605-016-3262-4. Epub 2016 Oct 21.
7. Adler JT, Mack E, Chen H. Equal oncologic results for laparoscopic and open resection of adrenal metastases. J Surg Res. 2007 Jun 15;140(2):159-64. Epub 2006 Dec 29.
8. Chen JY, Ardestani A, Tavakkoli A. Laparoscopic adrenal metastasectomy: appropriate, safe, and feasible. Surg Endosc. 2014 Mar;28(3):816-20. doi: 10.1007/s00464-013-3274-z. Epub 2013 Dec 14.
9. Romero Arenas MA, Sui D, Grubbs EG, Lee JE, Perrier ND. Adrenal metastectomy is safe in selected patients. World J Surg. 2014 Jun;38(6):1336-42. doi: 10.1007/s00268-014-2454-x.
10. Golden SH, Robinson KA, Saldanha I, Anton B, Ladenson PW. Clinical review: Prevalence and incidence of endocrine and metabolic disorders in the United States: a comprehensive review. J Clin Endocrinol Metab. 2009 Jun;94(6):1853-78. doi: 10.1210/jc.2008-2291.
11. James BC, Aschebrook-Kilfoy B, Cipriani N, Kaplan EL, Angelos P, Grogan RH. The Incidence and Survival of Rare Cancers of the Thyroid, Parathyroid, Adrenal, and Pancreas. Ann Surg Oncol. 2016 Feb;23(2):424-33.
12. Amini N, Margonis GA, Kim Y, et al. Curative Resection of Adrenocortical Carcinoma: Rates and Patterns of Postoperative Recurrence. Ann Surg Oncol. 2016 Jan;23(1):126-33. doi: 10.1245/s10434-015-4810-y. Epub 2015 Aug 18.
13. Kim Y, Margonis GA, Prescott JD, et al. Nomograms to Predict Recurrence-Free and Overall Survival After Curative Resection of Adrenocortical Carcinoma. JAMA Surg.2016 Apr;151(4):365-73. doi: 10.1001/jamasurg.2015.4516.
14. Fassnacht M, Kroiss M, Allolio B. Update in adrenocortical carcinoma. J Clin Endocrinol Metab. 2013 Dec;98(12):4551-64. doi: 10.1210/jc.2013-3020. Epub 2013 Sep 30.
15. Griffin AC, Kelz R, LiVolsi VA. Aldosterone-secreting adrenal cortical carcinoma. A case report and review of the literature. Endocr Pathol. 2014 Sep;25(3):344-9. doi: 10.1007/s12022-014-9307-x.
16. Kurtulmus N, Yarman S, Azizlerli H, Kapran Y. Co-secretion of aldosterone and cortisol by an adrenocortical carcinoma. Horm Res. 2004;62(2):67-70. Epub 2004 Jun 21.
17. Torpy DJ, Mullen N, Ilias I, Nieman LK. Association of hypertension and hypokalemia with Cushing's syndrome caused by ectopic ACTH secretion: a series of 58 cases. Ann N Y Acad Sci. 2002 Sep;970:134-44.
18. Gaujoux S, Mihai R. European Society of Endocrine Surgeons (ESES) and European Network for the Study of Adrenal Tumours (ENSAT) recommendations for the surgical management of adrenocortical carcinoma. Br J Surg. 2017 Mar;104(4):358-376. doi: 10.1002/bjs.10414.
19. Delivanis DA, Erickson D, Atwell TD, et al. Procedural and clinical outcomes of percutaneous adrenal biopsy in a high-risk population for adrenal malignancy. Clin Endocrinol (Oxf). 2016 Nov;85(5):710-716. doi: 10.1111/cen.13117. Epub 2016 Jun 20.
20. Kim Y, Margonis GA, Prescott JD, et al. Curative Surgical Resection of Adrenocortical Carcinoma: Determining Long-term Outcome Based on Conditional Disease-free Probability. Ann Surg. 2017 Jan;265(1):197-204. doi: 10.1097/SLA.0000000000001527.
21. Weiss LM. Comparative histologic study of 43 metastasizing and nonmetastasizing adrenocortical tumors. Am J Surg Pathol. 1984 Mar;8(3):163-9.
22. Beuschlein F, Weigel J, Saeger W, et al. Major prognostic role of Ki67 in localized adrenocortical carcinoma after complete resection. J Clin Endocrinol Metab. 2015 Mar;100(3):841-9. doi: 10.1210/jc.2014-3182. Epub 2015 Jan 5.
23. Choi YM, Kwon H, Jeon MJ, et al. Clinicopathological Features Associated With the Prognosis of Patients With Adrenal Cortical Carcinoma: Usefulness of the Ki-67 Index. Medicine (Baltimore). 2016 May;95(21):e3736. doi: 10.1097/MD.0000000000003736.
24. Duregon E, Molinaro L, Volante M, et al. Comparative diagnostic and prognostic performances of the hematoxylin-eosin and phospho-histone H3 mitotic count and Ki-67 index in adrenocortical carcinoma. Mod Pathol. 2014 Sep;27(9):1246-54. doi: 10.1038/modpathol.2013.230. Epub 2014 Jan 17.
25. Terzolo M, Angeli A, Fassnacht M, et al. Adjuvant mitotane treatment for adrenocortical carcinoma. N Engl J Med. 2007 Jun 7;356(23):2372-80.
26. Postlewait LM, Ethun CG, Tran TB, et al. Outcomes of Adjuvant Mitotane after Resection of Adrenocortical Carcinoma: A 13-Institution Study by the US Adrenocortical Carcinoma Group. J Am Coll Surg. 2016 Apr;222(4):480-90. doi: 10.1016/j.jamcollsurg.2015.12.013. Epub 2015 Dec 21.
27. Zheng S, Cherniack AD, Dewal N, et al. Comprehensive Pan-Genomic Characterization of Adrenocortical Carcinoma. Cancer Cell. 2016 May 9;29(5):723-36. doi: 10.1016/j.ccell.2016.04.002.
