Free Microvascular Transfer of the Proximal Fibular Epiphysis to Reconstruct the Lateral Malleolus in a Pediatric Patient

August 1, 2022

Abstract

Background

A five-year-old female with no significant past medical history presented with a two-month history of right leg pain without an antecedent traumatic event. On exam, she had a mass over the lateral malleolus on the right. She underwent neoadjuvant chemotherapy after a bone biopsy revealed an Ewing sarcoma. She subsequently underwent resection of her sarcoma. The lateral malleolus was reconstructed using an ipsilateral free proximal fibula based on the peroneal artery. Debate remains over the ideal vascular pedicle to allow for the continued growth of the epiphyseal plate following free flap or pedicled reconstruction using the proximal fibular head.

Summary

The patient has minor hindfoot varus and dynamic supination with gait. She is ambulating independently and is using a lateral heel post to assist with foot position. She has minimal pain and deformity of the ankle. MRI and plain radiographs were taken at 33 months postoperatively and demonstrated a stable position of the graft with evidence of physeal/epiphyseal remodeling.

Conclusion

Reconstruction of an epiphyseal plate lends a unique challenge to surgeons. Transfer of a vascularized epiphyseal plate leads to optimal long-term results due to the continued growth of the graft. This report is unique because the peroneal artery is used with 33 months of follow-up. Overall, the results and function of the patient are acceptable.

Key Words

fibula; epiphyseal; transfer; lateral; malleolus


Case Description

A five-year-old female with no significant past medical history presented with a two-month history of right leg pain without an antecedent traumatic event. On exam, she had a mass over the lateral malleolus on the right. MRI was obtained, which demonstrated a destructive bone lesion measuring 3 × 2 × 14 cm of the distal fibula. She underwent neoadjuvant chemotherapy after a bone biopsy revealed an Ewing sarcoma. Following chemotherapy, her sarcoma was reimaged and found to have decreased in size to 2 × 1 × 11 cm. She was subsequently taken to the operating room and underwent resection of her sarcoma, followed by ipsilateral free vascular transfer of the proximal fibula and epiphyseal plate using the peroneal artery as a pedicle. She is currently 33 months postoperative and is weight-bearing as tolerated to the right lower extremity. She has minimal pain or deformity of the ankle. She has minor hindfoot varus and dynamic supination with gait. She is ambulating independently and is using a lateral heel post to assist with foot position (Figure 1). MRI and plain radiographs were taken at 33 months postoperatively and demonstrated the stable position of the graft with evidence of physeal/epiphyseal remodeling (Figure 2).

Figure 1. Postoperative Photo of Wound. Published With Permission

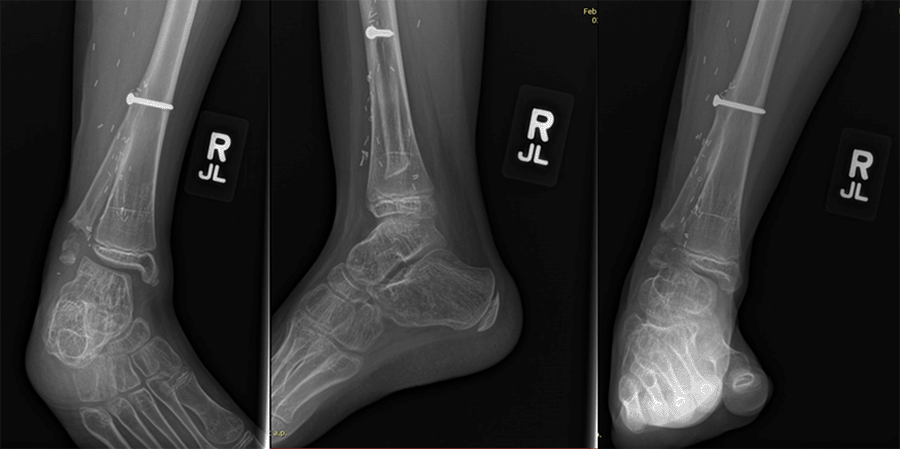

Figure 2. Postoperative Radiographs at 33 Months. Published With Permission

Images demonstrate good alignment of flap and stable ankle and physeal/epiphyseal remodeling.

Discussion

All relevant articles were included, and relevant citations were cross-referenced within each article in the literature review. Four relevant articles were identified (Table 1 outlines a current review of the literature). All articles describe using the proximal fibular head, including the epiphyseal plate, to reconstruct the ipsilateral distal fibular defect. Two articles discuss the free microvascular transfer, and two describe a pedicled reverse-flow flap. One of the reverse flow flaps required a venous interposition graft.1 One of the flaps was based on the peroneal artery, and three were based on the anterior tibial artery. All four case reports have good long-term follow-up with no evidence of graft loss or ankle instability. Of note, two of the children requiring lateral malleolus reconstruction had injuries related to lawnmower accidents, one from a car accident and one due to sarcoma. Furthermore, one patent was 13 years of age at the time of reconstruction, and the author postulates that skeletal growth was complete at the time of reconstruction.1

Table 1. Current Published Literature on Free Fibular Epiphyseal Transfer.
Author
Mechanism of injury

Age in years at time of surgery

Flap Type
Pedicle
Follow Up
Proximal Fixation
Distal Fixation
Nebojsa, R
Car accident/crush injury
8
Reverse flow Pedicled with vein graft
anterior tibial artery
4 years with normal growth and ankle stability
intra-osseous wiring and free bone graft between tibia and fibula
slit tendon of peroneus brevis passed through holed drilled in fibula and sutured
Bibbo, C
Riding lawnmower accident
6
free flap
anterior tibial artery
2 years with continued growth ankle stability
2.5-mm locking plate securing fibula to fibula
biceps tendon used to recreate calcanea-fibular ligament
Sales de Gauzy, J
osteogenic sarcoma resection
13
reverse flow pedicled
anterior tibial
2.5 years with no pain and full ankle function
fibular osteotomy and screw fixation to tibia
lateral collateral ligament and biceps tendon sutured to, trans epiphyseal screw placed
Concannon, M.J.
lawnmower accident
4.5
free flap
peroneal
5 years with normal growth and ankle stability
pinned with extension of fibula into tibial IM canal
placed adjacent to talus

Pediatric patients with bony defects present a unique challenge to the reconstructive surgeon. The loss of an epiphyseal plate is ideally reconstructed with a new plate that will grow with the patient and prevent further joint instability and deformity. Both Bibbo and Rajacic present children who initially did not undergo reconstruction of the lateral malleolus but subsequently presented with complaints of ankle instability and increasing valgus deformity.2,3 A stable ankle reconstruction that can provide longitudinal limb growth must be accomplished while minimizing donor site morbidity. We chose to use the ipsilateral fibular head to prevent donor site morbidity on her healthy leg in our patient. All case reports in our literature review also used ipsilateral proximal fibula.

Debate remains over the ideal pedicle to use when performing an epiphyseal transfer.4 Papadopulos and Innocenti have previously described their series of patients with fibular head microvascular transfer used to reconstruct the growing wrist and forearm.5,6 Both of these authors have postulated that when the fibular pedicle is based on the peroneal artery, there is an increased risk for the early fusion of the growth plate and the risk of insufficient blood supply. Of the four previous case reports relevant to our patient, one surgical team used the peroneal artery, and three used the anterior tibial artery. One of the anterior tibial artery patients had reached a state of relative skeletal maturity.1 Both pedicles were described to have good outcomes without progressive ankle instability or mention of limb length discrepancy. We believe that more research into ideal pedicle selection will help to guide further surgeons in making this critical decision.

We chose to fixate the proximal fibular shaft to the lateral tibia to secure our graft and allow for the appropriate direction of fibular growth. This was performed by creating a small hemicortical osteotomy with a burr hole into the tibia. Synostosis was created, and we then used a 3.5 mm positional screw that held the fibula secure. The lateral ligaments of the turned-down proximal fibula were used to re-create the lateral malleolus using FiberWire™. A wide variety of proximal and distal graft fixation methods were used in the reviewed literature and are summarized in Table 1.

One limitation of our case report is that our follow-up period of 33 months is still a relatively short time. We may not be able to detect early growth plate fusion and subsequent limb length discrepancy at the time of follow-up. The four papers listed in our case report have varying follow-up times based on the patient's age and time-to-publication. Sales de Gauzy presented a 13-year-old boy in whom he postulated that evaluating growth was not possible due to his patient having already reached skeletal maturity. He placed a trans-epiphyseal screw for distal fixation of the graft. Piper et al. reported that although limb length discrepancy is common in pediatric patients undergoing fibular reconstruction, only 14% require reoperation.7 They postulate that this indicates the pediatric population's ability to adapt, compensate, and eventually achieve independent ambulation.

Conclusion

Taylor et al. reported the first successful microvascular free fibula transfer in humans in 1975.8 Microvascular free fibula transfer has since been described as a workhorse in bony reconstruction following tumor resection.911 In the pediatric population, continued longitudinal growth of the transferred fibular epiphysis makes the proximal head of the fibula an ideal choice for the reconstruction of bones requiring continued growth with the patient. It has also been documented that transfer of the epiphysis may lead to active remodeling of the osteoarticular surface.5,12,13 These authors also postulate that the anterior tibial artery is the blood supply to the epiphysis and that basing the flap off of the peroneal artery results in early closure of the growth plate, limited long-term growth, and possible necrosis of the graft.6 Growing patients with loss of the distal fibula have demonstrated progressive ankle instability and valgus deformity when left untreated.2,3,14 Only a few case reports of the proximal fibular head are used to reconstruct the lateral malleolus in the pediatric or adult population. We believe the proximal fibular head is an ideal graft for lateral mortus reconstruction in the pediatric population, and further studies into the ideal pedicle need to be completed.

Lessons Learned

The proximal fibular head is an ideal graft for reconstruction of the lateral malleolus in the growing patient. More data regarding pedicle selection and graft fixation techniques will further help surgeons refine this reconstructive technique.

References

  1. de Gauzy JS, Kany J, Cahuzac JP. Distal fibular reconstruction with pedicled vascularized fibular head graft: a case report. J Pediatr Orthop B. 2002;11(2):176-180. doi:10.1097/00009957-200204000-00017
  2. Bibbo C, Ehrlich DA, Kovach SJ 3rd. Reconstruction of the pediatric lateral malleolus and physis by free microvascular transfer of the proximal fibular physis. J Foot Ankle Surg. 2015;54(5):994-1000. doi:10.1053/j.jfas.2014.12.004
  3. Concannon MJ, Croll GH, Boschert MT, Gaines RW, Puckett CL. Free fibular transfer in a growing individual (long-term results). Microsurgery. 1993;14(9):624-627. doi:10.1002/micr.1920140916
  4. Taylor GI, Wilson KR, Rees MD, Corlett RJ, Cole WG. The anterior tibial vessels and their role in epiphyseal and diaphyseal transfer of the fibula: experimental study and clinical applications. Br J Plast Surg. 1988;41(5):451-469. doi:10.1016/0007-1226(88)90001-x
  5. Innocenti M, Delcroix L, Manfrini M, Ceruso M, Capanna R. Vascularized proximal fibular epiphyseal transfer for distal radial reconstruction. J Bone Joint Surg Am. 2005;87 Suppl 1(Pt 2):237-246. doi:10.2106/JBJS.E.00295
  6. Papadopulos NA, Weigand C, Kovacs L, Biemer E. The free vascularized fibular epiphyseal transfer: long-term results of wrist reconstruction in young patients. J Reconstr Microsurg. 2009;25(1):3-13. doi:10.1055/s-0028-1090614
  7. Piper M, Irwin C, Sbitany H. Pediatric lower extremity sarcoma reconstruction: A review of limb salvage procedures and outcomes. J Plast Reconstr Aesthet Surg. 2016;69(1):91-96. doi:10.1016/j.bjps.2015.08.035
  8. Taylor GI, Miller GD, Ham FJ. The free vascularized bone graft. A clinical extension of microvascular techniques. Plast Reconstr Surg. 1975;55(5):533-544. doi:10.1097/00006534-197505000-00002
  9. Chen CM, Disa JJ, Lee HY, et al. Reconstruction of extremity long bone defects after sarcoma resection with vascularized fibula flaps: a 10-year review. Plast Reconstr Surg. 2007;119(3):915-926. doi:10.1097/01.prs.0000252306.72483.9b
  10. Ghert M, Colterjohn N, Manfrini M. The use of free vascularized fibular grafts in skeletal reconstruction for bone tumors in children. J Am Acad Orthop Surg. 2007;15(10):577-587. doi:10.5435/00124635-200710000-00001
  11. Sainsbury DCG, Liu EH, Alvarez-Veronesi MC, et al. Long-term outcomes following lower extremity sarcoma resection and reconstruction with vascularized fibula flaps in children. Plast Reconstr Surg. 2014;134(4):808-820. doi:10.1097/PRS.0000000000000555
  12. Manfrini M, Innocenti M, Ceruso M, Mercuri M. Original biological reconstruction of the hip in a 4-year-old girl. Lancet. 2003;361(9352):140-142. doi:10.1016/S0140-6736(03)12192-7
  13. Taddei F, Viceconti M, Manfrini M, Toni A. Growth and remodelling of the autologous bone transplant used in a pediatric femoral reconstruction. Proc Inst Mech Eng H. 2002;216(2):95-104. doi:10.1243/0954411021536315
  14. Rajacic N, Dashti H. Reconstruction of the lateral malleolus using a reverse-flow vascularized fibular head: a case report. Microsurgery. 1996;17(3):158-161. doi:10.1002/(SICI)1098-2752(1996)17:3<158::AID-MICR12>3.0.CO;2-Z

Authors

Moores CRa; Tomlinson HHa; Jain Ab; Leddy LRc; Tavana MLa,c; Armstrong MBa

Author Affiliations

  1. Department of Plastic Surgery, Medical University of South Carolina, Charleston, SC 29425
  2. Medical University of South Carolina College of Medicine, Charleston, SC 29425
  3. Department of Orthopedic Surgery, Medical University of South Carolina, Charleston, SC 29425

Corresponding Author

Craig R. Moores, MD
Department of Plastic Surgery
Medical University of South Carolina
171 Ashley Avenue
Charleston, SC 29425
Phone: (843) 870-0773
Email: moorescr@musc.edu

Meeting Presentation

American Society of Plastic Surgery Resident's Day, Orlando, FL, October 2017

Disclosure Statement

The authors have no conflicts of interest to disclose.

Funding/Support

The authors have no relevant financial relationships or in-kind support to disclose.

Received: May 13, 2019
Accepted: December 4, 2020
